shaft drive 250cc ATV quad for sale

FOB Reference Price:Get Latest Price
US $1,300-1,550 / Units | 10 Unit/Units (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Fuel:
Gas / Diesel
Displacement:
250cc
Engine Type:
4 Stroke
Transmission Type:
Automatic
Transmission System:
Shaft Drive
Brand Name:
Hensim
Place of Origin:
Chongqing, China (Mainland)
Model Number:
HS250ST-7(blue)
Product:
250cc ATV
Starting:
Electric
Clutch:
Automatic
Transmission:
Shaft drive
Gearing:
5 - Speed+reverse
Front Brakes:
Disc
Rear Brakes:
Drum
Ignition:
CDI
Color:
Blue,red,black,green,yellow
Fuel Tank Capacity:
12L
SupplyAbility
SupplyAbility:
6000 Unit/Units per Month
Packaging & Delivery
Packaging Details
Carton Dimensions: 1970*1150*860(mm)
Port
Chongqing
Lead Time :
25 working days



Product Description



Model
Factory Model Number and ModeHS250ST-7 Utility ATV
Power Train
EngineHensim 230cc air cooled, 4 stroke, single cylinder,5-speed with reverse engine
Start ModeElectric
Bore/Stroke71mm×58mm
Compression Ratio8.7:1
Max Horsepower14HP/7000rpm
Max Torque16.5N.m/5500rpm
IgnitionCDI
Transmission5-speed+reverse(Auto clutch)
Final DriveShaft
Chassis
Front Suspension Mapherson single A-armed and unit suspension
 Rear SuspensionCentral unit shock absorber suspension
Brakes F/RHydraulic pressure disc/Drum
Tires F/R23×7-10; 22×10-10
Other
Fuel Tank Capacity12L
Battery Type12V/14Ah
MeterDriving speed, mileage, gears,turn lights and headlight with low or high beam indications.
ColorBlue,red,black,green,yellow
Dimensions
Overall: L*W*H1940mm×1050mm×1150mm
Seat Height810mm
Ground Clearance220mm
Wheelbase1150mm
Dry Weight245kg
Shipping Information
Carton: L*W*H1970mm×1150mm×860mm
Shipping Weight285kg
40 HQ Container QTY36/40'HQ
FOB term and shipping portFOB Chongqing(Chongqing port)
Features

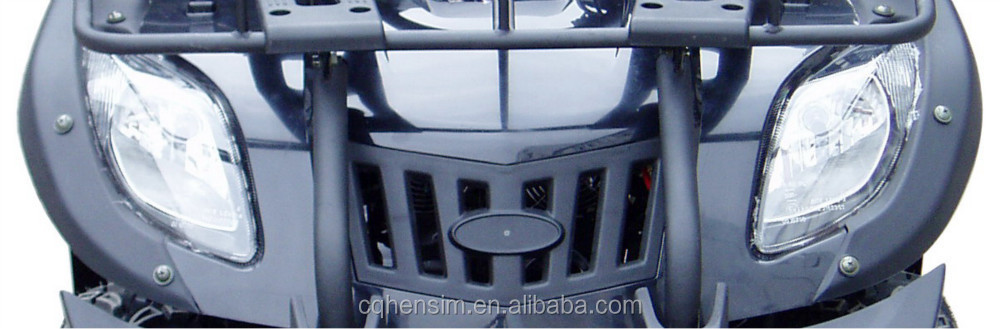

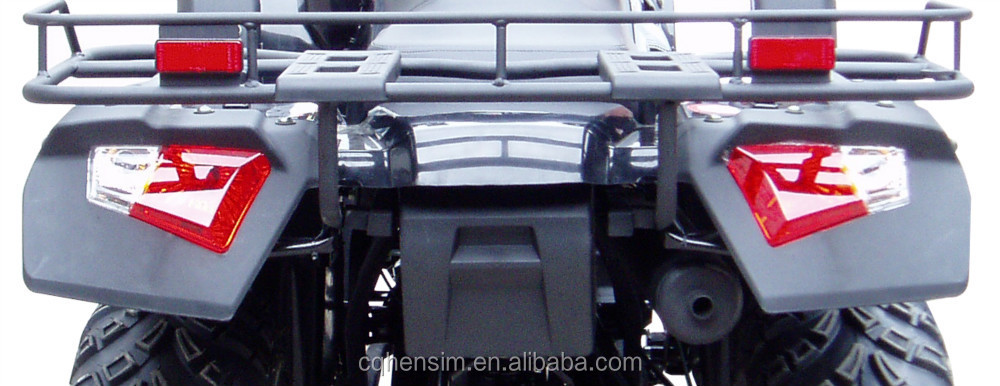

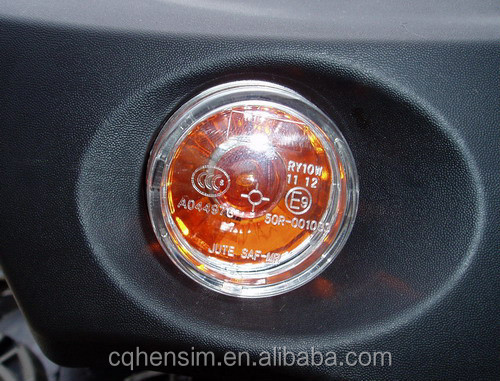

Double headlights with high and low beams, taillights and four European standard turn lights upgrade the utility ATV smart.

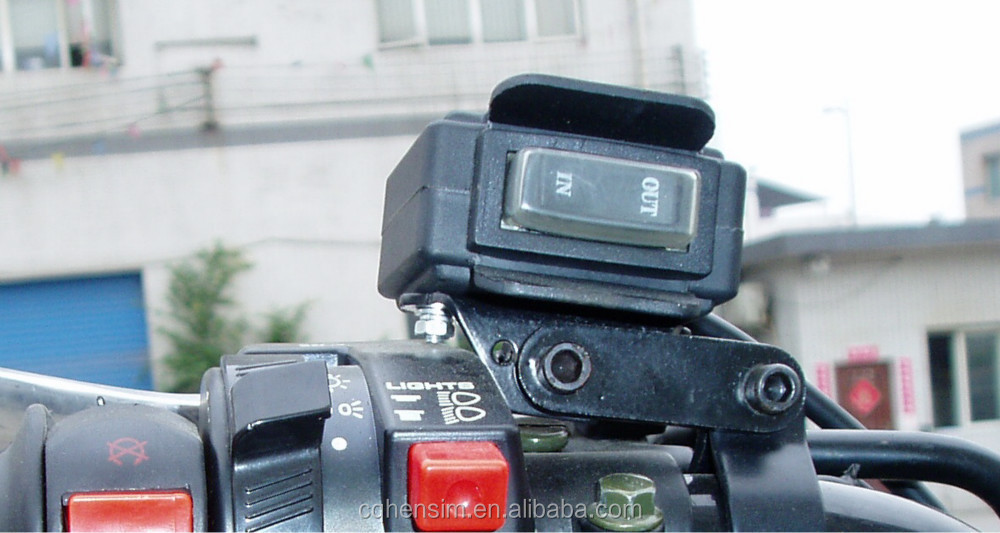

Powerful winch with providing the pulling force of max 2000lbs located in the front vehicle frame. Compact and "two points"(OUT/IN) NEWbutton on the left handle bar is easy and reliable operation to control the winch rope release or resetting.4.jpg5.jpg

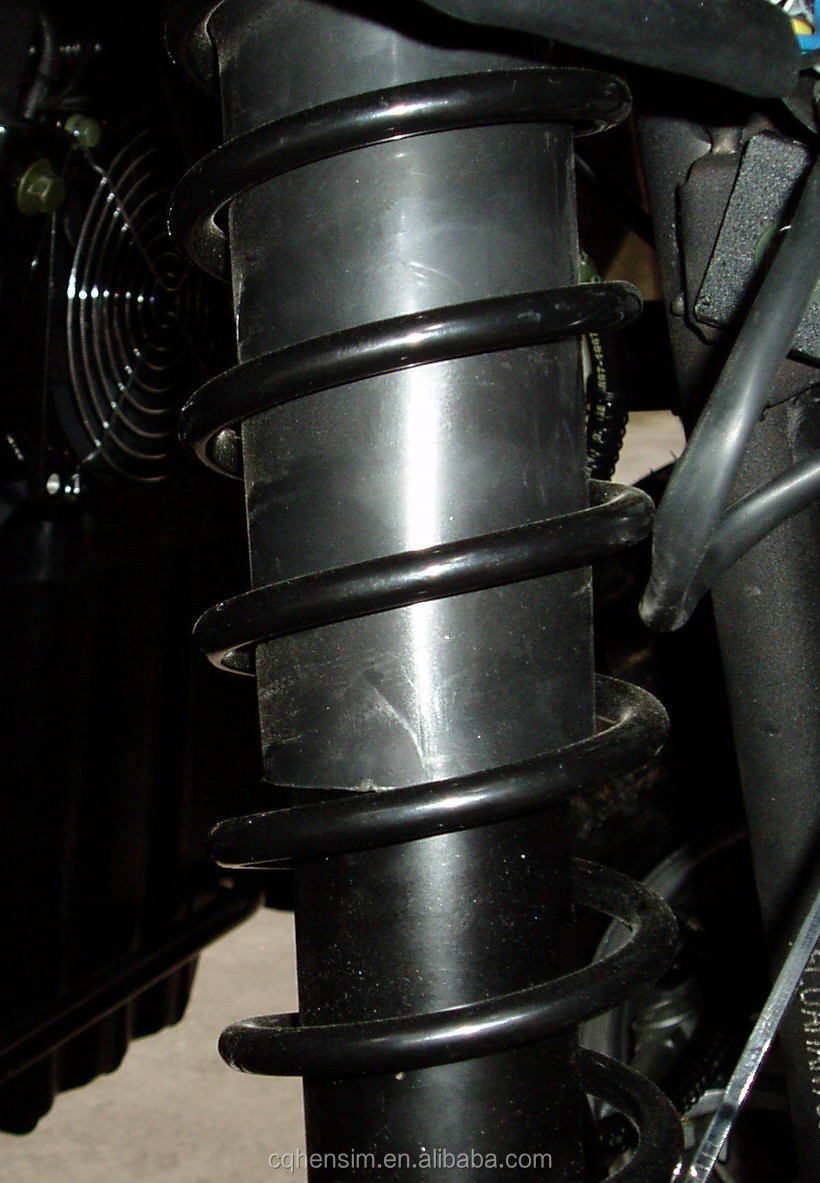

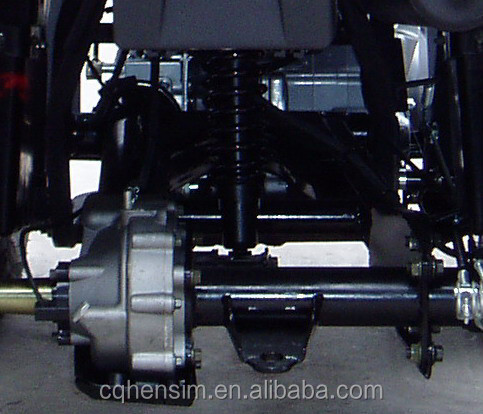

Front Mcpherson suspension and central rear suspension with fully adjustable shock. 6.jpg7.jpg

Double cooling fans located in front of the engine increase cooling effect.

Pushing down the reverse gear lever by the left hand helps the vehicle backward when the engine is idling.

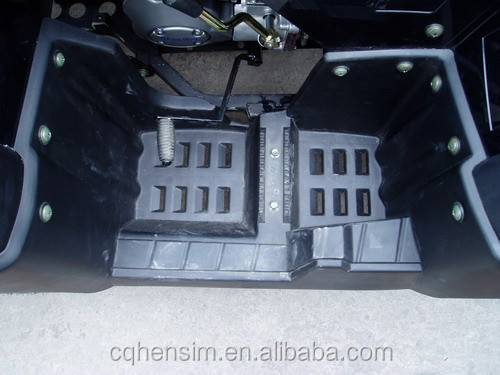

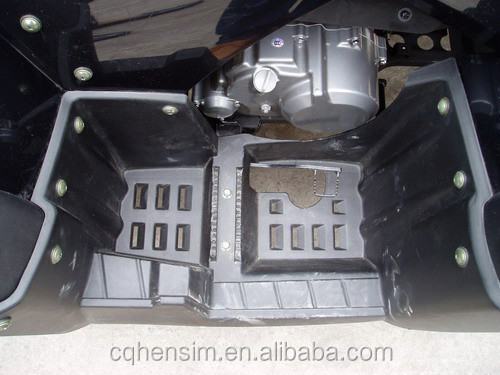

Stable and reliable meshed footrest.11.jpg10.jpg
Chongqing Hensim Group Co.,Ltd.


Add: No.28 Banshancun, Jiulong Industry Zone, Jiulongpo District, Chongqing, China.400080

    Cel:+86-23-15825935062 Tel:+86-23-68919888(Direct)  Fax:+86-23-68909999(Direct)  www.hensimmotorcycle.com





Packaging & Shipping

 Steel frame pakage

Carton Dimensions: 1970*1150*860(mm)
