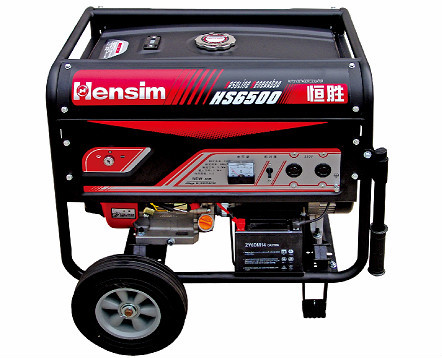

Portable Power Gasoline Generator

FOB Reference Price:Get Latest Price
50 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Chongqing, China (Mainland)
Brand Name:
Hensim
Model Number:
HS6500
Output Type:
AC Single Phase
Speed:
3200
Frequency:
50HZ
Rated Power:
5.0 KW
Rated Voltage:
230V
Rated Current:
22.7A
Rated Frequency:
50HZ
Rated Output Voltage:
230V
Rated Power Output:
5 KVA
Max.Power Output:
5.5KVA
Type:
Single cylinder, Forced air cooled , 4-Stroke
Fuel:
90No.
Cetification:
CE , EPA ,CCC
Exporting Countries:
Poland,Italy,Spain,Dubai,Syria,etc
Name:
Gasoline Generator
Supply Ability
Supply Ability:
5000 Set/Sets per Month
Packaging & Delivery
Packaging Details
one generator is in one brown or color carton...
Port
Chongqing
Lead Time :
Within 15 days after receipt of deposit

 Specification

Portable Power Gasoline Generator

1) 14HP output 4-stroke gasoline engine.
2) 220v 50Hz 5000W rated power.
3) 8 hours of continuous operation without refueling.



Product Description

PORTABLE POWER GASOLINE GENERATORS

1.Good quality and service
2.OEM is offered
3.CE, ISO9001

PORTABLE POWER GASOLINE GENERATORS

 1.  One Cylinder, 4-Stroke, Air cooled Gasoline Engine, with Recoil Starting or Electric Starting.



2.  Compact and Portable Power for Emergency and Home Standby Use



3.  Good Mufflers and Less Fuel Consumption



4.  Color or Brown Carton are for Choice.

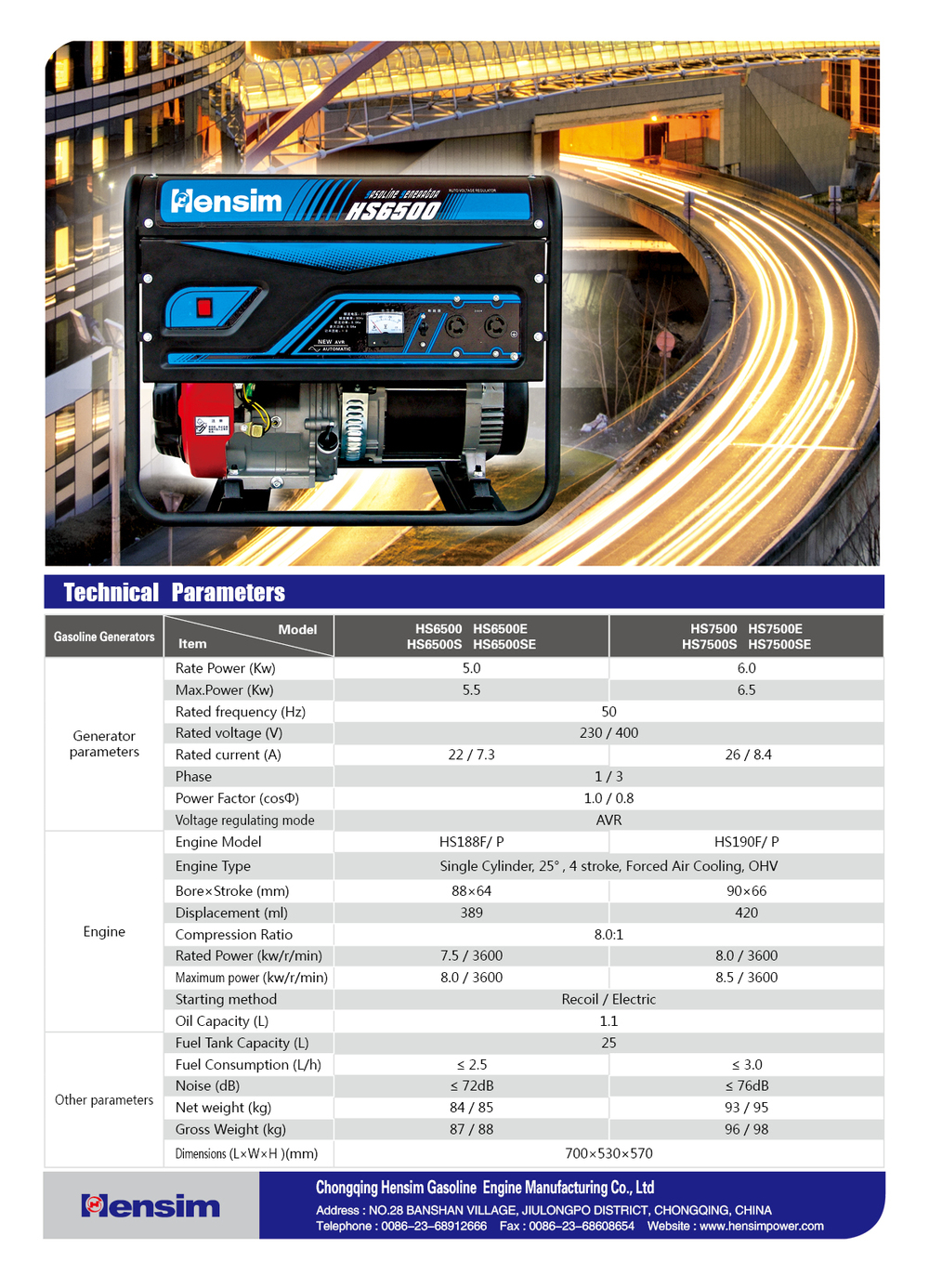

Technical Parameter

Alternator

Rated Power(Kw)

5.0

Max. Power(Kw)

5.5

Rated Frequency(Hz)

50

Rated Voltage(V)

230

Rated Amperage(A)

22.7

Phase:

1

Power Factor

1.0

Voltage Regulate:

AVR

Engine

Engine Model

HS188F

Engine Type

1-Cylinder, 2 , Air-cooled,4-stroke,OHV

Bore×Stroke(mm)

70×55

Displacement(ml)

210

Compression Rate

8.5:1

Rate Power(kw/r/min)

3.8/3600

Max.Power(kw/r/min)

7.2/3600

Start Method

Recoil Starting or Electrical Starting

Oil Capacity(L)

0.6

Others

Fuel Tank Capacity(L)

15

Fuel Consumption( L/h)

≤1.2

Noise(dB)

≤72dB

Net Weight(kg)

41

Gross Weight(kg)

44

Package Size(L×W×H)(mm)

600×455×480

Loaded of Container(unit)

225/20GP,485/40GP,485/40HQ



1. One Cylinder, 4-Stroke, Air cooled Gasoline Engine, with Recoil Starting or Electric Starting.

2. Compact and Portable Power for Emergency and Home Standby Use

3. Good Mufflers and Less Fuel Consumption

4. Color or Brown Carton are for Choice.

5. Non-contact transistorized ignition(C.T.I)System make sure easy and quick starting.

6. Alternator: copper wire and aluminum wire optional. 8'' rubber or foam wheels & 2 handles

7. Warranty: one year or 500 hours

Tell us your detailed requirement, to recommend you the right Genset model

Engine mounted to this Genset

* Advanced OHV, air-cooled, 4 stroke engine

* Light and compact design

* Low fuel consumption

* Easy and fast starting and installing

* Lower noise and small vibration

* CE certificated approved
