5000W rated power economic gasoline generator

FOB Reference Price:Get Latest Price
50 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Chongqing, China (Mainland)
Brand Name:
Hensim
Model Number:
HS6500
Output Type:
AC Single Phase
Frequency:
50HZ
Rated Power:
5.0 KW
Rated Voltage:
230V
Rated Current:
22.7A
Rated Frequency:
50HZ
Rated Output Voltage:
230V
Rated Power Output:
5 KVA
Max.Power Output:
5.5KVA
Type:
Single cylinder, Forced air cooled , 4-Stroke
Fuel:
90No.
Cetification:
CE , EPA ,CCC
Exporting Countries:
Poland,Italy,Spain,Dubai,Syria,etc
Supply Ability
Supply Ability:
5000 Set/Sets per Month
Packaging & Delivery
Packaging Details
one generator is in one brown or color carton...
Port
Chongqing
Lead Time :
Within 15 days after receipt of deposit

 Specification

1) 14HP output 4-stroke gasoline engine.
2) 220v 50Hz 5000W rated power.
3) 8 hours of continuous operation without refueling.



Product Description

HS6500 5000W rated power economic gasoline generator

1.Good quality and service
2.OEM is offered
3.CE, ISO9001



HS6500 5000W rated power economic gasoline generator



1.  One Cylinder, 4-Stroke, Air cooled Gasoline Engine, with Recoil Starting or Electric Starting.



2.  Compact and Portable Power for Emergency and Home Standby Use

3.  Good Mufflers and Less Fuel Consumption



4.  Color or Brown Carton are for Choice.



Technical Parameter

Alternator

Rated Power(Kw)

5.0

Max. Power(Kw)

5.5

Rated Frequency(Hz)

50

Rated Voltage(V)

230

Rated Amperage(A)

22.7

Phase:

1

Power Factor

1.0

Voltage Regulate:

AVR

Engine

Engine Model

HS188F

Engine Type

1-Cylinder, 2 , Air-cooled,4-stroke,OHV

Bore×Stroke(mm)

70×55

Displacement(ml)

210

Compression Rate

8.5:1

Rate Power(kw/r/min)

3.8/3600

Max.Power(kw/r/min)

7.2/3600

Start Method

Recoil Starting or Electrical Starting

Oil Capacity(L)

0.6

Others

Fuel Tank Capacity(L)

15

Fuel Consumption( L/h)

≤1.2

Noise(dB)

≤72dB

Net Weight(kg)

41

Gross Weight(kg)

44

Package Size(L×W×H)(mm)

600×455×480

Loaded of Container(unit)

225/20GP,485/40GP,485/40HQ



1. One Cylinder, 4-Stroke, Air cooled Gasoline Engine, with Recoil Starting or Electric Starting.

2. Compact and Portable Power for Emergency and Home Standby Use

3. Good Mufflers and Less Fuel Consumption

4. Color or Brown Carton are for Choice.

5. Non-contact transistorized ignition(C.T.I)System make sure easy and quick starting.

6. Alternator: copper wire and aluminum wire optional. 8'' rubber or foam wheels & 2 handles

7. Warranty: one year or 500 hours

Tell us your detailed requirement, to recommend you the right Genset model

Engine mounted to this Genset

* Advanced OHV, air-cooled, 4 stroke engine

* Light and compact design

* Low fuel consumption

* Easy and fast starting and installing

* Lower noise and small vibration

* CE certificated approved



Company Information



Chongqing Hensim Group Co.,LTD .is the leading manufacturer of motorcycles , engines and generators in China which was found in Sep.1998 for 16 years up to now .At present there are over 1500 people, and high intermediate technical personnel accounts for above 15%. factory building area covers about 300 acres .It has an annual capacity of 200,000 sets.

Our main products are Gasoline Engine,Diesel Engine, Gasoline Generator,Diesel Generator,Water Pumps and Pressure Washer etc. our products have been exported to more than 50 countries and areas. Our main markets are in Europe , north America,south America,Africa,Middle East and Southeast Asia area etc.

Most of our items have got various approvals such as CE,EPA CCC certificate, we persistent follow the policy of “observing contracts and keeping promise”and pursue the principle of “sincere, serving customer based on equality & reciprocity”.

We are looking forward to going hand in hand with you and co-create resplendence

"Quality is first, Customers are friends".

Chongqing Hensim people are always paying great attentions to quality controlling

from the beginning to the end. Every piece of goods is tested strictly one by one before packing.

We keep goods to meet the standard of CE,CCC, ISO9001:2000.

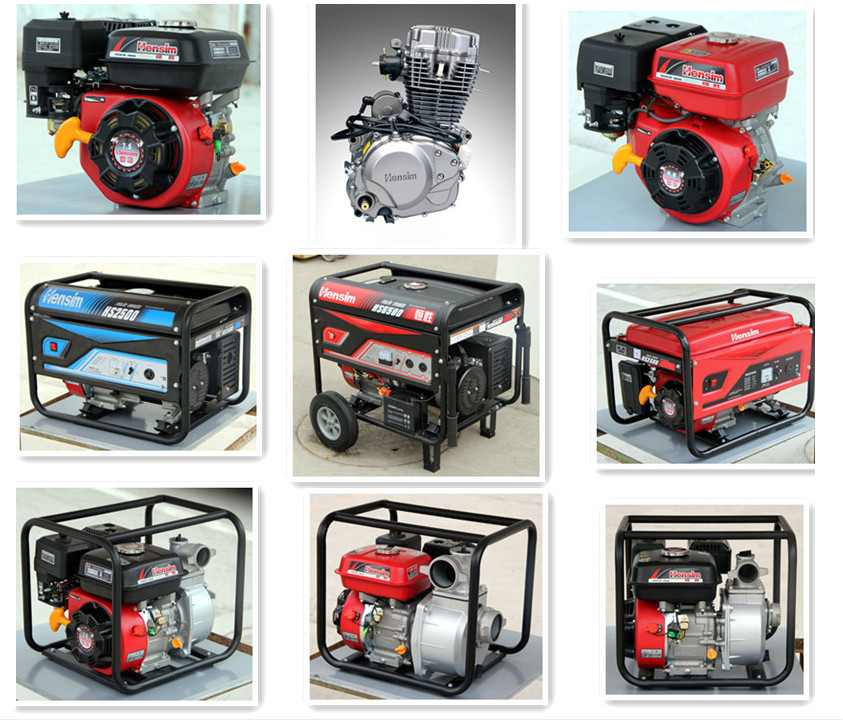

 Other Value Products:

 Click Me Back To Our Home Page↓



FAQ



1.Q:Are you a factory or trading company?

A: We are a factory.



2.Q:Where is your factory located?

A: Our factory is in Chongqing , China.



3.Q:What is the material of your products?

A: Iron,Steel,plastic,etc.



4.Q:How about quality control in your factory?

A:"Quality is first, Customers are friends".



Chongqing Hensim people are always paying great attentions to quality controlling

from the beginning to the end. Every piece of goods is tested strictly one by one before packing.



We keep goods to meet the standard of CE,CCC, ISO9001:2000.



5.Q:How about guarantee?

A: It's within three months after goods is discharged in the destination.

During that period,if some breakdown easily spare parts need to change,my factory offers free.



For example, fuel cock,spark plug,starting hand,etc.
